Radiating ground




This type of heating is the one that better adapt to the thermal solar energy and the one that smaller consumption of energy presents/displays. In addition, it is the most healthful system, as much, that it is recommended by the World-wide Organization of the Health (the WHO).

The radiating ground is constituted by a network of pipes uniformly scattered and buried under the pavement. The temperature to which the water flows by its interior is moderate, from 35 to 45 ºC, unlike 70 - 90 ºC of the systems that use radiators.

When distributing itself the heat by the ground, obtains an ideal gradient of temperatures for the human comfort, maintaining the feet and the fresh head hot.

This gradient of temperatures favors the power saving. With the habitual systems of heating the hot air tends to locate itself near the ceiling, when the greater thermal necessity is in the inferior part of the rooms. Warming up the surface these necessities without having are covered to warm up the air of the ceiling unnecessarily and saving energy.

The fact to work to low nonparched temperature the nasal atmosphere nor mucous, and the low speed in which the warmed up air rises does not raise to dust nor microorganisms.

The thermal receivers cannot generate water every day hot since they are subject to the climatic incidences, so the system will have to be based on a boiler of high performance or a heat pump that contributes the heat required for all the installation. The receivers will work of complementary form, providing a great saving in the electrical fuel consumption or.
More about boilers of high performance more

Cold ground

The same installation can be used to cool in summer. For it it is necessary that the group heating engineer is a heat pump, since these can generate heat in winter and cold in summer.
More about heat pumps

The action to cool consists of making circulate cold water around the same buried circuit. But everything does not finish there, since in summer there is much humidity in the atmosphere and to be able to cool it it must dehumidify.

Products
Photovoltaic solar energy
Solar thermal energy
Low consumption boilers
Greywater treatment
Radiating ground
Heat pump
Air conditioning of
swimming pools
Wind energy
Biomass
Other sources of energy
Subsidized investments
renewable energies : to ensure the future of our children
Client attention:
902 053 038

The form most efficient and economic to heat a home is by means of radiating ground. It is the system of cleaner, quiet, comfortable and healthful heating that exists, as much is thus, that he is the only advisee by the World-wide Organization of the Health.

Its use do not parched the air nor the nasal mucous and not raise the acaruses of the dust, fact that its installation is very recommendable in hospitals, day-care centers or residences of old.

In Soliclima we installed the best tubes, the Multibeton, that allow to work with hot water and cold water and assure an absolute reliability with 30 years guarantee.

The Multibeton tubes mount in hot avoiding the formation of superficial tensions and microfissures that could cause future cracks, so that flights never take place.

We completed its radiating ground installation with the more efficient boilers of low temperature, with solar collectors of support and heat pumps that allow to generate cold, with the intention to reduce always the power consumption to the maximum.

In addition, to the interested ones in cold ground, we arrange to dehumidifiers of atmosphere necessary to create a fresh and pleasant atmosphere avoiding glass condensation and ground, and that work with the same cold water that generates the heat pump.

Some realized installations

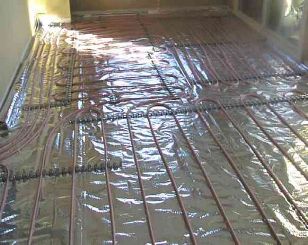

Installation of 155 m2 with heat pump to generate heat in winter and cold in summer.

Installation of 155 m2 with heat pump to generate heat in winter and cold in summer. It also incorporates solar collectors who cover great part with the heating necessities and dehumidifiers to air conditioning in summer.

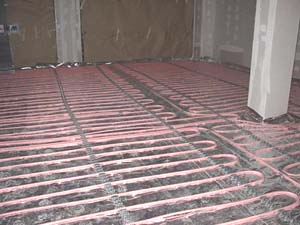

Installation of 110 m2 with boiler of low temperature that has a high yield working to the suitable temperature of the radiating ground. Installation of 110 m2 with boiler of low temperature that has a high yield working to the suitable temperature of the radiating ground.

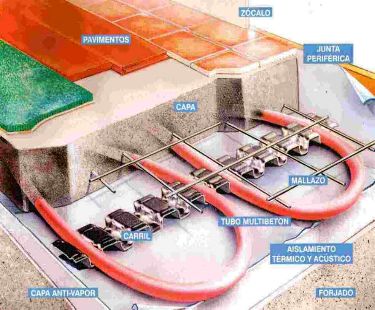

Scheme of a radiating ground installation

Scheme of a radiating ground installation

In order to prevent that the heat is lost flowing downwards they place diverse insulating layers of polímetro metalized. Superficially the Multibeton tube is located, it is covered with cement and the pavement settles.

It is preferable to place floor tiles, although also it is possible to use another type of materials, like carpet or parquet.
